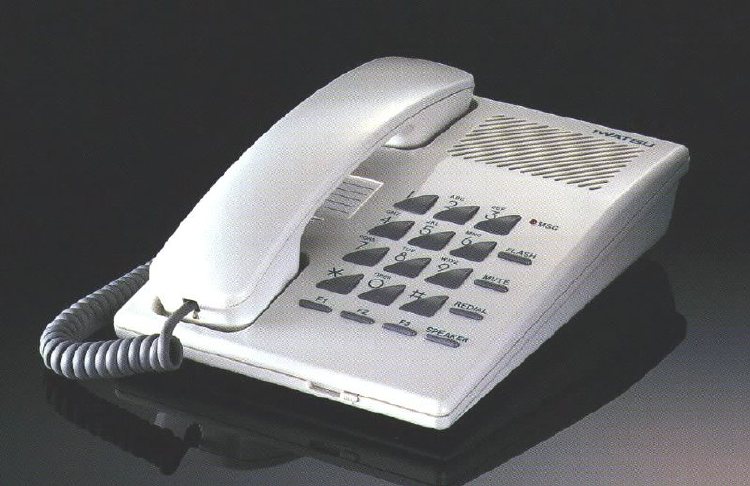

SLT IW-60
IW-60
The Iwatsu IW-60 Single Line Telephone is designed for PBX/KTS terminals and provides various useful functions with the best quality.
Specifications
Speaker
Instruction Card
Indication Lamp
Fixed Dial Key (F1=dial7. F=8.F3=9)
Speaker Volume Control Switch

DIMENSTIONS (Packing)
Approx. W160 x H215 x D95mm
(approx. W235 x H245 x D88mm)

WEIGHT(Packing)
Approx. 730g
(approx.950 g)(3)
Features
EIndication Lamp (Massage Waiting [DC90V/Ringing Lamp])
EFlash (approx.600 ms)
EMute
ELast Number Redial (CO outgoing redialing is not available when used as an extension telephone of a PABX.)
EOn-Hook Dialing
EFixed Dial Keys for be-hind PBX use(F1=dial 7.F2=8.F3=9)
ESpeaker Volume Control (variable)
EHandset Volume Control (two steps)
ERinger Volume Control (three steps)
EWall Mountable (wall mount pedestal is included)
EPulse (DP speed 10/20PPS)/ Tone Compatible
EDP Male Ratio Selection(33/44%)

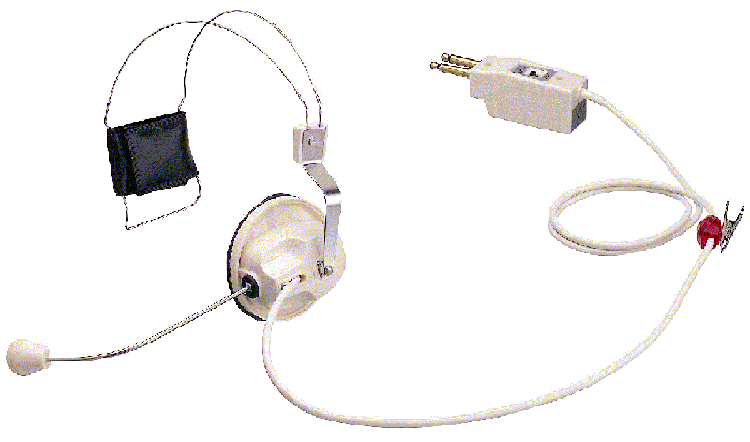

COROLLE
This headset (COROLLE) is specially designed for telephone switchboard operators and is also available to operators of TV & radio studios, etc. The lightweight and compact design of this headset ensures comfortable wearing.
Specifications

1.Weight Net app.200grms
Head Assembly app.85grms(excluding cord)
2.Cord Length 115cm
3.Performance Characteristics
Transmitter (including amplifier)
a) Available Power Response -54dB}7dB at1000 Hz load resitance;23ƒ¶with 50mA DC
b) DC Resistance : app.80Ħ with 50 mA DC app.80Ħ with 50mA DC
c) Frequency Range: 300 to 3400Hz 300 to 3400Hz
d) Operation Current Range : 20 to 100mA 20 to 100mA
Receiver
a) Sensitivity 71dB}6dB at 1000Hz input; 0.5mW
b) Impedance 160ƒ¶}50ƒ¶ at 1000Hz
c) Frequency Range 300 to 3400Hz
4.Insulation Resistance
a) Between Plug Tips & Sleeves Not less than 50MĦ at 250 VDC
b) Between Plug Sleeves & Plug Casa Screw Not less than 50MĦ at 250 VDC
c) Between Plug Tips & Voice Tube Not less than 50MĦ at 250 VDC

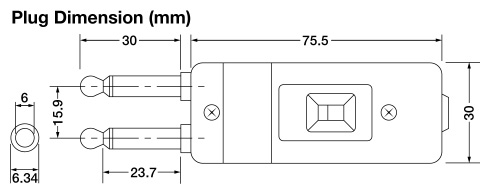

Packing Dimensions
W (mm) 173
D (mm) 123
H (mm) 80
Weight 300g
